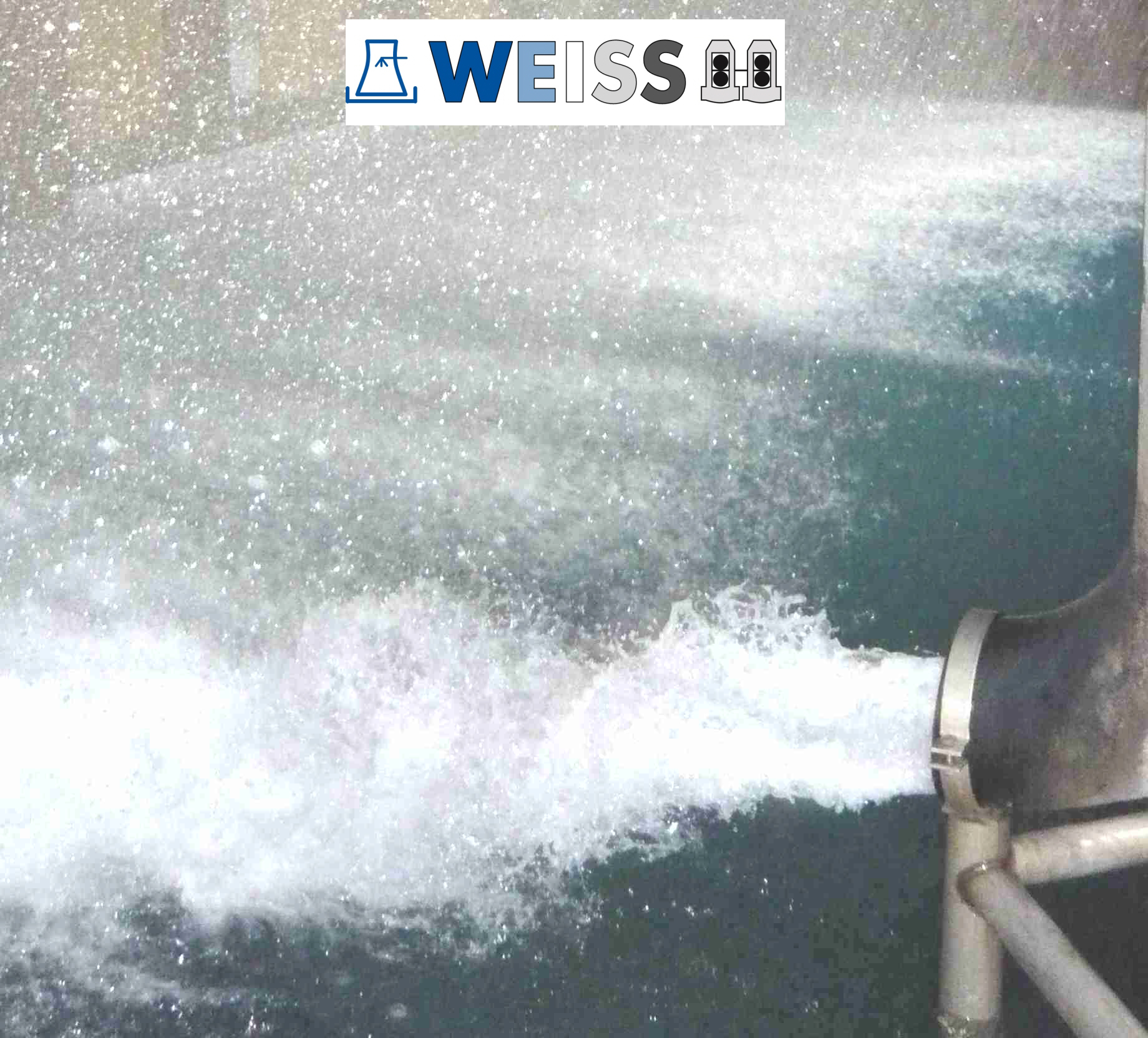

WEISS – Efficient operation of cooling water circuits by integrated desalination at the example of the steel industry

Initial situation

  • Use of 2.3 billion m3 / a of water across industries for cooling purposes in Germany.
  • Salting due to evaporation / circulation in cooling circuits requires up to 200 m³ / h of blowdown to prevent corrosion.
  • No need-based dosing of cooling water treatment chemicals -> Increased operational costs.
  • Complex cooling water composition: biocides, anticorrosion agents, hardness stabilizers, flocculants, hardeners, turbidity / coloring as well as solids input (production-related), oil / grease from leaks.
  • Complex water cycles, especially in mature plants.

Project objectives

  • Halving of blow down water by removing salts and solids in the make-up water and appropriate chemical dosing (ATP measurement, solid state sensor).
  • Water savings potential in an average steel plant up to 800,000 m³ / a.

Innovative process approaches

  • Desalination and softening by means of capacitive deionization (CDI).
  • Development of anti-fouling coatings for reverse osmosis membranes.
  • High pressure reverse osmosis and evaporation for further narrowing of the concentrate (EVAP®) with patented polymer heat exchangers.
  • Modeling of cooling water circuits and mass flows to determine suitable process combinations / dosing quantities as well an economic-technical assessment by means of life cycle assessment.

Current results (as of 11/2017)

  • Solids separation before desalination process by means of magnetic separation or sand filter to fulfill the requirements possible.
  • Production of pure water fulfilling water quality requirements according company specifications by means of CDI (maximum separation grades achieved: chloride: 98%, sulfate: 72%, hardness: 84%, energy requirement: 0.8 – 1.3 kWh / m³) or by evaporation.
  • So far no disturbances of cooling water treatment chemicals on CDI, evaporation or reverse osmosis.

Outlook

  • Minimization of energy demand or increase in water yield of desalination.
  • Operational demonstration starting in I / 2018 at the production site of Deutsche Edelstahlwerk in Hagen.
  • Simulations and LCA based on data from the demonstration.

Publications:
Hubrich, M., Kozariszczuk, M.:„Effiziente Kreislaufführung von Kühlwasser durch integrierte Entsalzung am Beispiel der Stahlindustrie. „IndustrieTage Wassertechnik, Dortmund, November 2017

Laghmari, S.; Ulbricht, M.Development and evaluation of an antifouling coating for reverse osmosis membranes which can be applied Jahrestreffen der ProcessNet-Fachgruppen für Fluidverfahrenstechnik, , Membrantechnik und Mischvorgänge, München27-28.02.18

Fitzke, B, Vu, D.: What´s up in Membrane Technology in Germany – Science and Innovation, DGMT IFAT 2018 Workshop 16.05.2018
